Digital Clamp Meter Multimeter 4000 Count AC DC Voltage Current Resistance Capacitance NCV Tester

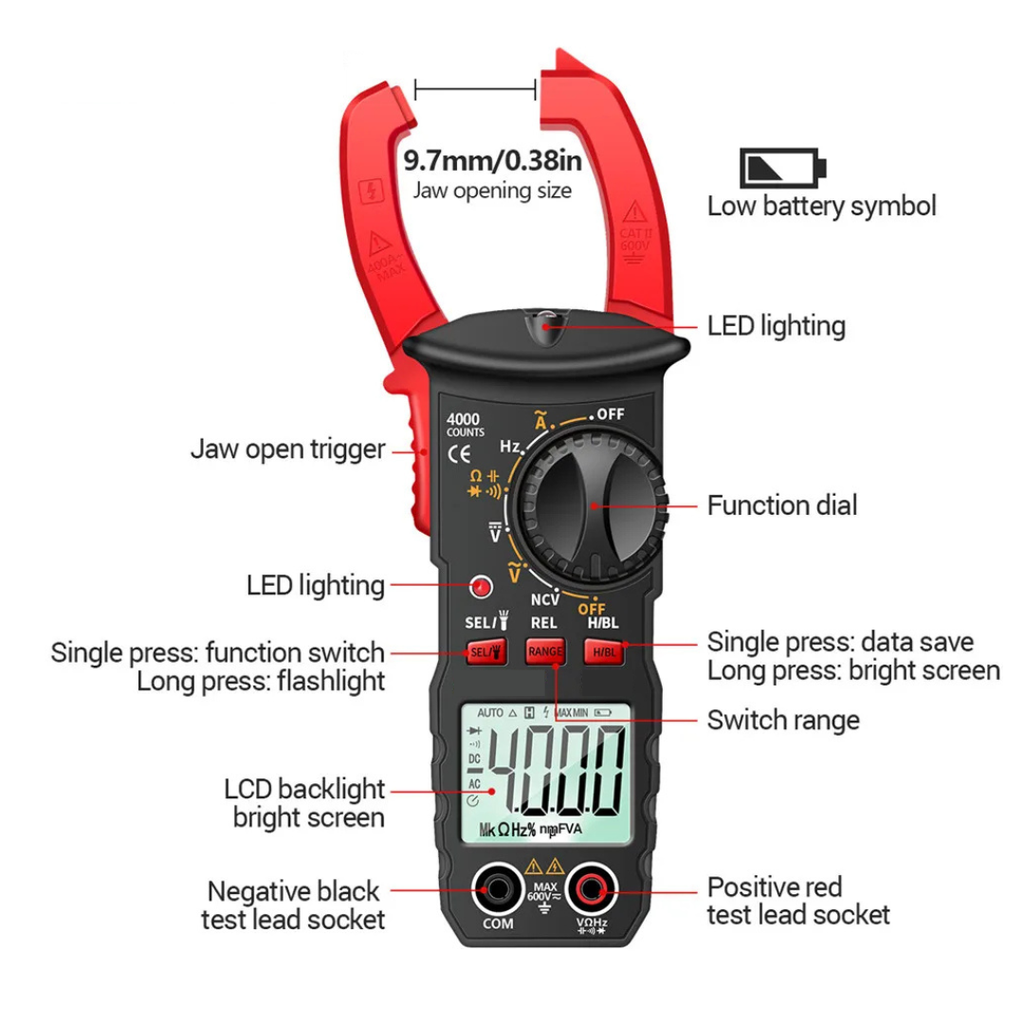

Key Features:

• AC clamp jaw measurement, reads AC current up to 400A without breaking the circuit, jaw opening 9.7mm
• 4000-count backlit LCD display, clear and accurate readings in all lighting conditions
• NCV induction detection, audible alarm that speeds up as it gets closer to a live wire

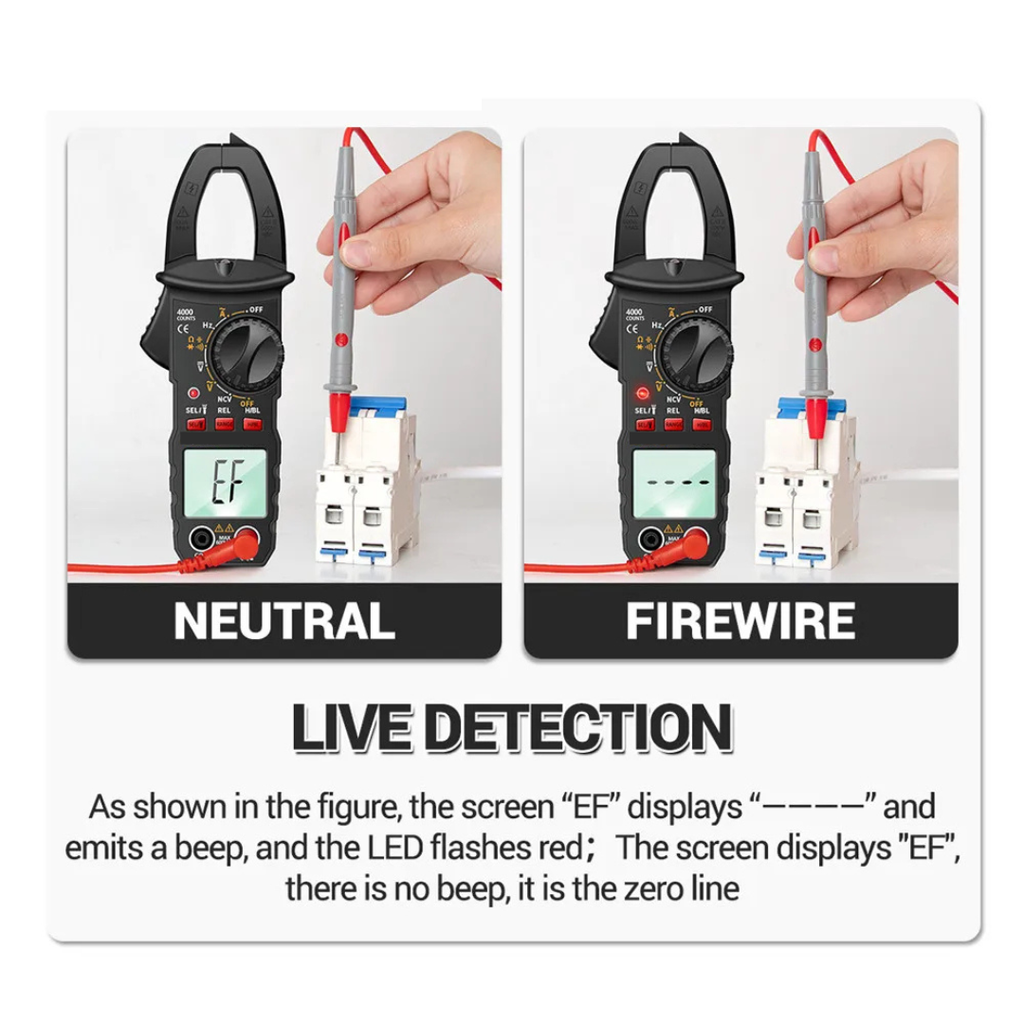

• Live wire detection (EF), screen displays a warning and buzzer sounds when a live wire is identified
• Auto-ranging, automatically selects the correct measurement range
• Built-in LED flashlight, illuminates dark panels and switchboards during testing

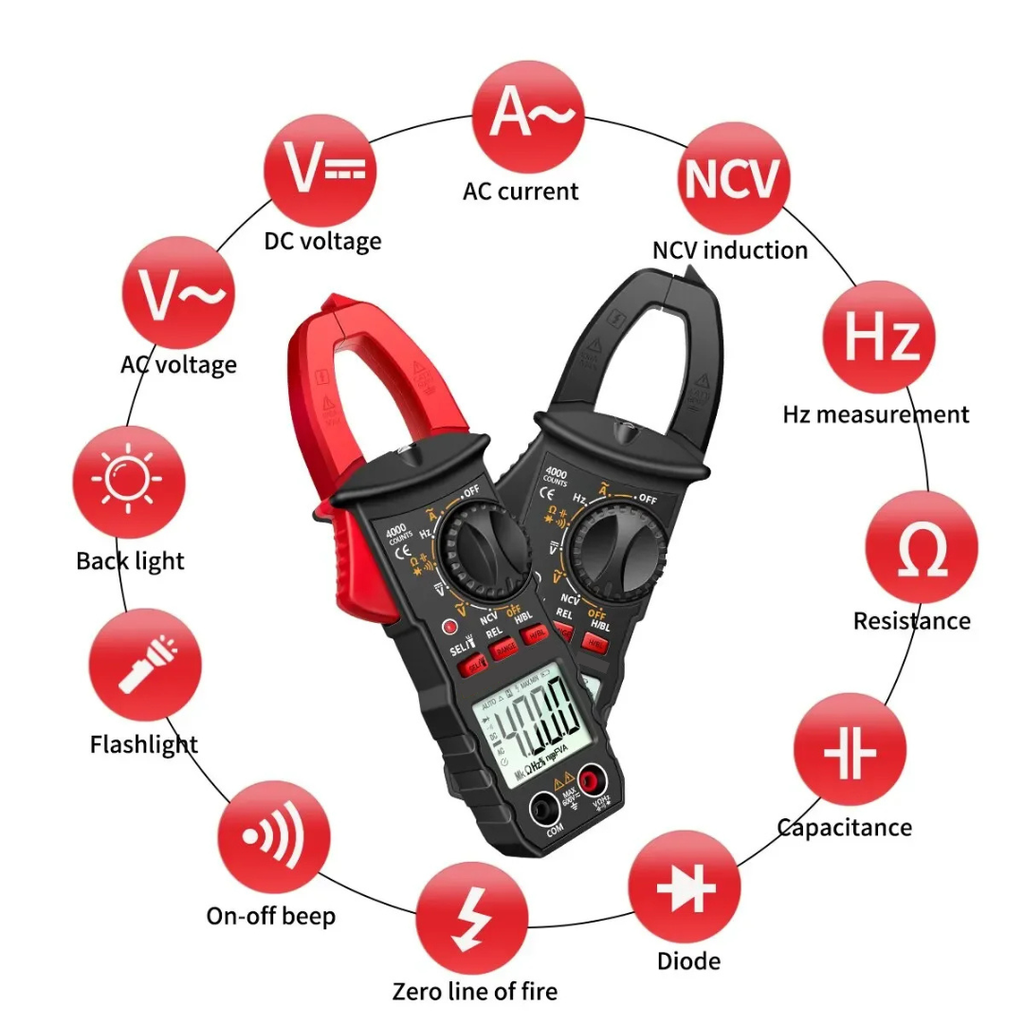

• Measures AC/DC voltage, AC current, resistance, capacitance, frequency, diode, and continuity
• Auto shut-down, powers off after 15 minutes of no use to preserve battery life
• Data hold and MAX/MIN functions, lock readings or capture peak values

Specifications:

• Dimensions: 18.5 x 6.5 x 3.1 cm
• Weight: 124g
• Display: 4000 counts LCD with backlight
• AC voltage range: 4V / 40V / 400V / 600V
• DC voltage range: 400mV / 4V / 40V / 400V / 600V
• AC current range: 40A / 400A
• Resistance range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance range: 1nF to 4mF
• Frequency range: 10Hz to 4MHz
• Jaw opening: 9.7mm
• Test lead length: 100cm
• Test lead material: Brass and PVC
• Material: ABS
• Power: 2 x AAA batteries (not included)
• Auto shut-down: After 15 minutes of inactivity

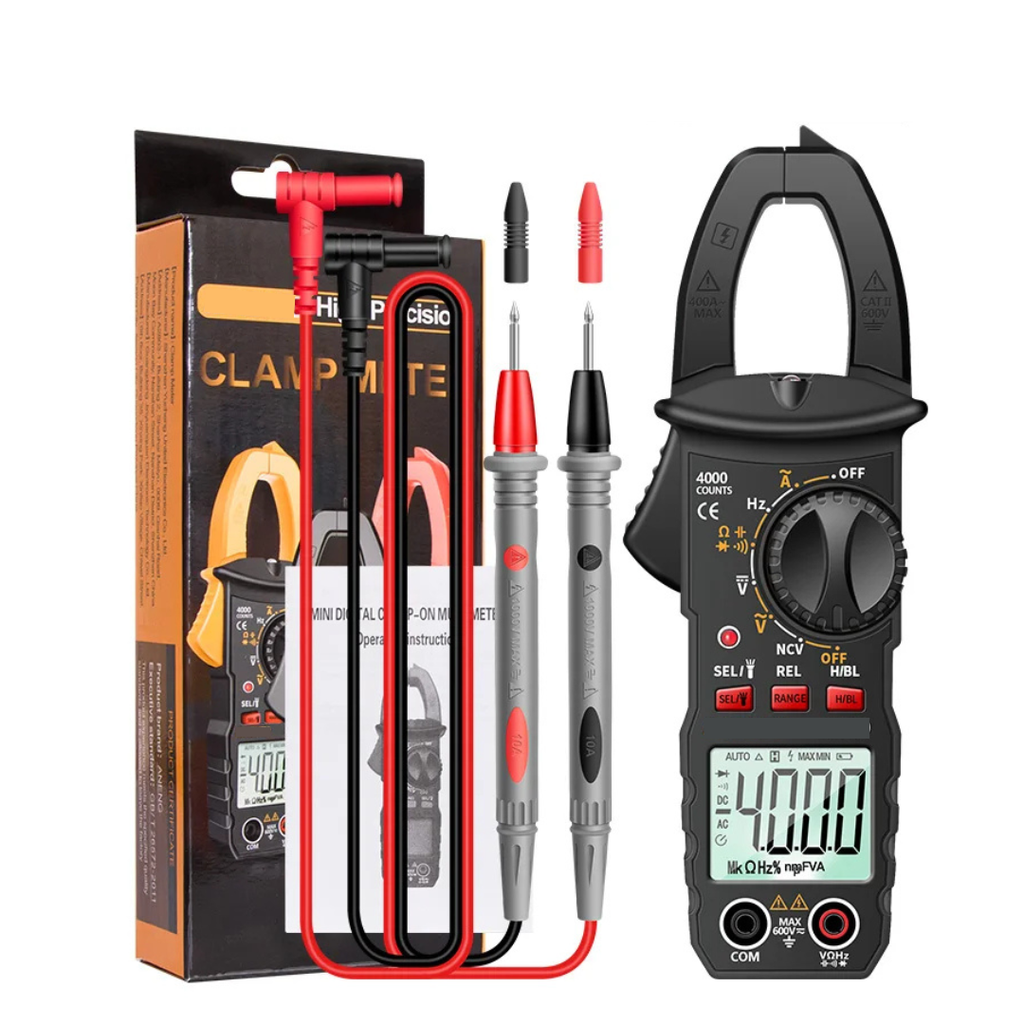

Package Contents:

• 1 x Digital clamp meter
• 2 x Test probes
• 1 x User manual
